Precision-engineered, CE-certified structural solutions designed for high-rise commercial developments, modern public infrastructure, and luxury residential envelopes.

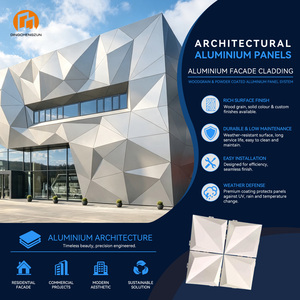

Geometric architectural metal panels engineered for high dynamic wind loads and dramatic geometric exterior shading visual dynamics.
Contact Us

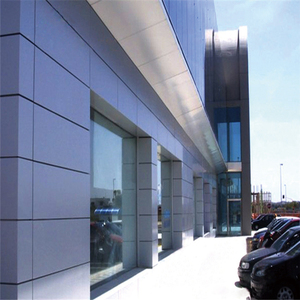

Heavy-duty aluminum composite panel system with 70% Kynar 500 PVDF coating, offering extreme weather resistance and acoustic dampening.
Contact Us

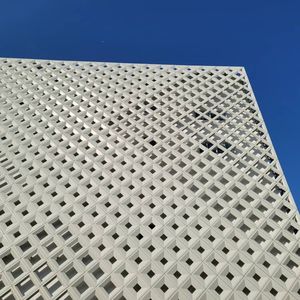

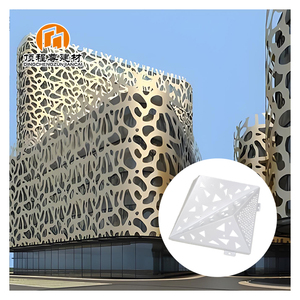

Precision CNC perforated panel screens customized for dynamic solar control, architectural privacy, and integrated curtain wall envelopes.
Contact Us
Industrial-grade fireproof aluminum curtain wall frameworks engineered for multi-story shopping malls and commercial complexes.
Contact Us

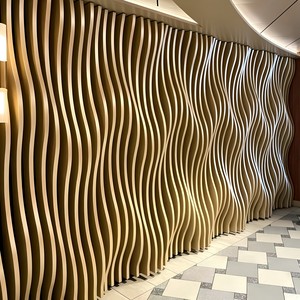

Sublimated organic wood finish aesthetics combined with non-combustible architectural aluminum durability for high-end biophilic designs.
Contact Us

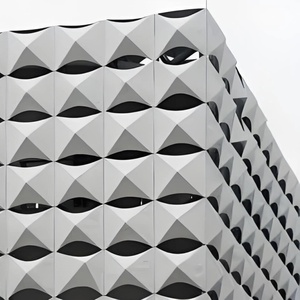

Thermally optimized exterior metal cladding panels designed for luxury hotel towers and institutional architectural applications.
Contact Us

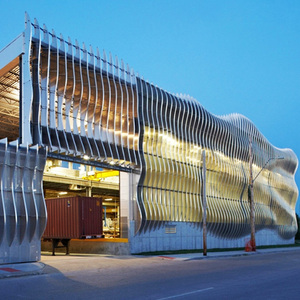

Dynamic wind-activated kinetic facade system engineered with corrugated high-strength aluminum alloy structural profiles.
Contact Us

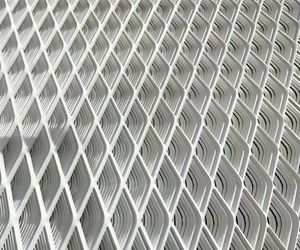

Structural expanded mesh curtain walls engineered for passive ventilation, reduced direct solar heat gain, and high-impact resistance.
Contact UsA rigorous examination of load-bearing dynamics, metallurgical standards, CE EN 1090/EN 12600 compliance, and system integration within modern building envelopes.
In modern architectural engineering, structural handrails and facade cladding systems serve a dual role: providing safety under high-velocity wind loads and maintaining structural integrity across extreme ambient temperature swings. As a leading CE certified handrail systems manufacturer and exporter, our structural profiles are fabricated primarily from structural-grade extruded aluminum alloys 6063-T6 and 6005A-T6, alongside marine-grade AISI 316 stainless steel components.
Aluminum alloy 6063-T6 provides an optimal strength-to-weight ratio with a ultimate tensile strength of no less than 205 MPa and yield strength of 170 MPa, rendering it highly resistant to dynamic stress fractures. For high-occupancy commercial balconies and high-rise perimeters, our structural glass railing base channels utilize 6005A-T6 structural tempers, achieving yield strength metrics exceeding 240 MPa. This structural threshold allows glass handrail assemblies to effortlessly withstand standard uniform distributed horizontal loads (UDL) of up to 1.5 kN/m to 3.0 kN/m, complying fully with international structural codes including EN 1991-1-1 (Eurocode 1) and North American IBC / CSA A440 standards.
Compliance with the European Construction Products Regulation (CPR 305/2011) demands rigorous third-party verification. CE certification for structural aluminum components requires strict adherence to EN 1090-1 and EN 1090-3 (Execution Class EXC2 / EXC3). Factory Production Control (FPC) systems are maintained under continuous audit to ensure non-destructive testing (NDT) of welded seams, automated dimensional tolerance checks, and 100% material traceability from ingot extrusion to jobsite delivery.
For glass infill handrail panels, impact performance is certified under EN 12600 (Class 1(B)1 safety ratings) and ASTM E935/E985 structural load testing protocols. Laminated tempered glass make-ups feature SentryGlas® (SG) ionoplast interlayers paired with heat-soak tested toughened glass panels. This design ensures that even under severe impact failure, the handrail system retains its post-breakage structural capacity without collapsing or detaching from the slab edge anchors.
| Performance Indicator | Test Standard / Standard Reference | Technical Specification Value | Engineering Benefit |
|---|---|---|---|
| Structural Line Load (Handrails) | EN 1991-1-1 / ASTM E935 | 1.5 kN/m to 3.0 kN/m continuous load | Guarantees zero-deflection safety for public assembly zones |
| Glass Impact Safety | EN 12600 Class 1(B)1 / ANSI Z97.1 | Drop height 1200 mm pendulum impact | Prevents fallback and catastrophic structural detachment |
| Wind Pressure Resistance (Facades) | EN 12179 / ASTM E330 | Design Pressure ≥ 4.0 kPa (P3 peak) | Engineered for super-tall towers & hurricane coastal zones |
| Finish Durability (PVDF Coating) | AAMA 2605 / ISO 2810 | 70% Kynar 500 Fluoropolymer Resin | Resists salt-spray corrosion > 4,000 hours with no chalking |
| Thermal Bridge Mitigation | EN ISO 10077-2 / CSA A440.2 | Polyamide Strip PA66GF25 (Uf ≤ 1.3 W/m²K) | Eliminates interior condensation and lowers HVAC loads |
Modern architectural trends favor unified exterior envelopes where balcony handrail profiles directly align with continuous curtain wall mullions and 3D architectural facade panels. By harmonizing extruded glass base channels with custom aluminum composite panels (ACM) and kinetic perforated cladding, structural engineers reduce thermal bridging at the slab edge while maintaining a streamlined exterior profile.
Our engineered anchorage mechanisms employ thermal isolators and heavy-duty 316 stainless steel chemical anchors designed to isolate mechanical vibrations and thermal expansion differential movement. This prevents structural noise transfer between the external curtain wall system and the interior occupant space, guaranteeing long-term building envelope airtightness (tested to ASTM E283) and water resistance under heavy static pressure (tested to ASTM E331 at 720 Pa).
Strategic insights for procurement directors, structural engineers, and real estate developers navigating international supply chains, sustainability metrics, and carbon border regulations.
International procurement frameworks are rapidly shifting toward low-carbon materials. Driven by EU CBAM (Carbon Border Adjustment Mechanism) and global LEED v4.1 certifications, tier-1 developers require EPD (Environmental Product Declaration) verification. Standard aluminum extrusions require ~16.6 kg CO2e per kg; modern green aluminum produced via hydroelectric smelting drops this below 4.0 kg CO2e. Future contract awards will prioritize suppliers offering recycled content (post-consumer aluminum) paired with verified EPD documentation.
Jobsite labor costs and tight construction schedules are accelerating the demand for unitized and modular off-site assembly. Handrail base shoes, spandrel panels, and perforated facade screens are increasingly ordered as pre-assembled, factory-glazed modules. Prefabricated assemblies arrive at the site sequenced for immediate crane placement, reducing site installation schedules by up to 40% while mitigating weather-related jobsite delays.
Architectural procurement workflows now require comprehensive 7D BIM (Building Information Modeling) objects containing real-time structural performance data, maintenance schedules, and thermal coefficient values. Procurement teams select manufacturers who provide parametric Revit models, allowing real-time clash detection, automated stress simulation, and expedited shop drawing sign-offs before manufacturing begins.
Exploring breakthroughs in smart dynamic shading, ultra-clear structural glass handrails, and non-combustible composite materials shaping the skylines of tomorrow.
The continuous architectural demand for unobstructed panoramic views has fueled the rise of continuous bottom-shoe frameless glass handrail systems. Utilizing CNC-machined structural aluminum shoe channels concealed within the finished floor slab, these systems achieve structural rigidity without top rails. Advanced structural interlayers allow 17.52mm and 21.52mm SentryGlas® laminated toughened glass panels to maintain structural line load performance up to 3.0 kN/m with minimal visible hardware.
Following updated global building safety regulations (such as BS 8414 and NFPA 285 standards), architectural cladding specs have moved away from traditional polyethylene-core composite panels. Modern high-rise procurement centers on A2-s1, d0 non-combustible aluminum composite panels (ACP) and solid 3mm anodized aluminum plate panels. These systems offer zero flame spread and minimal smoke emissions without compromising on 3D geometric shaping flexibility.
Kinetic facades represent the convergence of architectural sculpture and environmental engineering. Composed of suspended aluminum louvers or perforated plates mounted on low-friction bearing pivots, these panels move naturally with wind currents or motorized solar-tracking actuators. Kinetic facades provide dynamic solar shading, reduce cooling loads by up to 30%, and create an ever-changing dynamic exterior visual expression.
Architectural longevity in harsh coastal or high-pollution urban settings requires superior surface treatment. Next-generation 3-coat, 2-bake 70% PVDF coatings (complying with AAMA 2605 specifications) protect metal handrails and facade panels from chalking, color fading, and intense UV degradation for over 30 years. Sublimated wood grain techniques allow architects to incorporate warm organic timber visual textures while retaining the fire resistance, light weight, and structural reliability of architectural aluminum.
Single-source manufacturing accountability, rigorous laboratory validation, and suite-by-suite occupied building installation capabilities.
We eliminate vendor hand-off risks by managing every stage under one single responsibility framework: structural engineering, extrusion machining, thermal breaking, PVDF coating, glass glazing, and final field installation.
Our complete product catalog—including structural handrail shoe profiles, aluminum curtain walls, and perforated panels—holds certified test reports under CE (EN 1090/EN 12600) and CSA A440 standards, validated by independent laboratories.
Our specialized field installation teams utilize suite-by-suite retrofit methods. We remove and replace existing window, door, and balcony railing packages within a single working day per unit, allowing residents to stay in place with zero disruption.
Equipped with modern multi-axis CNC machining centers, automated laser cutting systems, and specialized bending machinery, we transform complex geometric CAD / BIM designs into flawless structural reality.
International shipments are packed in custom steel crates organized floor-by-floor and elevation-by-elevation. This eliminates double handling on site, protects finished surfaces, and matches your jobsite erection schedule.
From initial tender estimation, structural wind load calculations, and BIM submittal approvals through post-handover warranty support, our experienced technical engineering team is with you every step of the way.
A structured, transparent engineering and fabrication pipeline guaranteeing schedule adherence and zero-defect quality control.
Comprehensive analysis of architectural drawings, wind load metrics, structural anchor conditions, and local code compliance targets.
Generation of detailed shop drawings, structural anchor calculations, thermal isolation detail drawings, and physical material finish samples.
CNC profile machining, thermal break insertion, automated PVDF coating application, unit assembly, and factory glazing under strict ISO 9001 FPC.
Protective film application, heavy-duty steel crate packaging, container loading, and staged floor-by-floor delivery dispatching to your jobsite.
Field installation verification, site punch-list clearance, complete compliance documentation release, and long-term warranty support.
Expert insights addressing structural compliance, custom fabrication options, international export logistics, and site installation practices.
Our handrail systems undergo rigorous independent laboratory testing following European standards EN 1090-1/3 and EN 12600. Factory Production Control (FPC) protocols ensure strict metallurgical purity, certified weld inspection, and load testing (withstanding UDL forces from 1.5 kN/m up to 3.0 kN/m). Full Declaration of Performance (DoP) documentation and CE marking certificates are provided with every shipment.
We supply tempered, heat-strengthened, and laminated glass in thicknesses ranging from 12mm to 25.52mm. For heavy-traffic commercial zones and high-rise balconies, we specify laminated toughened glass featuring SentryGlas® (SG) ionoplast interlayers. SentryGlas® provides five times the tear strength and 100 times the rigidity of standard PVB, maintaining post-breakage structural safety even if both glass panes are fractured.
Yes. We manufacture fire-rated exterior cladding using solid 3mm anodized aluminum plate or EN 13501-1 Class A2-s1, d0 non-combustible aluminum composite panels (ACP). These systems meet global high-rise fire compliance regulations (including NFPA 285, BS 8414, and European fire safety standards), guaranteeing zero toxic smoke production and zero flame propagation.
We offer architectural-grade surface treatments, including 70% Kynar 500 PVDF fluoropolymer liquid coatings (conforming to AAMA 2605 specs) and 25-micron Class I anodic oxidation finishes. Tested under ASTM B117 salt-spray exposure for over 4,000 continuous hours, our finishes offer exceptional resistance to pitting, chalking, fading, and chemical corrosion in extreme coastal regions.
Our turnkey retrofit installation methodology replaces existing windows, balcony doors, and handrail systems suite-by-suite. Work within an individual suite is typically completed within a single working day. Our installation teams utilize dust-containment barriers, daily weather-tight sealant close-outs, and floor-by-floor hoisting schedules, allowing building occupants to safely remain in place throughout the renovation.
All orders are packaged in custom-built, ISPM-15 compliant fumigated timber or steel crates. Components are wrapped in protective polyethylene film, interleaved with shock-absorbing foam, and organized floor-by-floor to match your site erection sequence. We manage complete container loading, sea freight export documentation, customs clearing clearance compliance, and direct-to-site delivery logistics globally.
Submit your architectural elevations, structural specifications, or handrail tender drawings today. Our engineering design team will provide detailed CAD submittals, structural load estimates, and transparent factory-direct pricing within 48 hours.
