Direct factory-engineered fenestration and architectural aluminum extrusion systems. Custom extruded from 6063-T5/T6 alloys and premium UPVC compounds for commercial high-rise, residential villa, and industrial applications.
High-chamber multi-cavity UPVC extrusion designed for exceptional acoustic insulation (-45dB) and thermal isolation. Ideal for luxury residential developments.

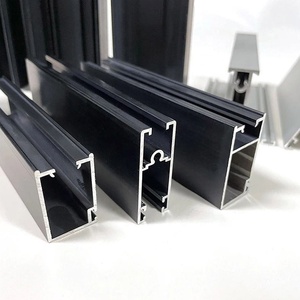

Thermally isolated aluminum profiles utilizing PA66-GF25 polyamide barrier strips. High structural integrity for sliding and casement structural fenestration.
Versatile architectural and decorative extrusion profiles. Finished with premium anodizing (15μm+) for high corrosion resistance and precision CNC fabrication.

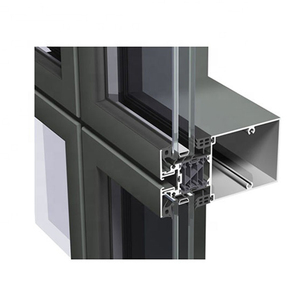

Heavy-duty structural stick and unitized curtain wall extrusions engineered for high wind loads, slab-edge movement, and seismic resilience in modern high-rises.

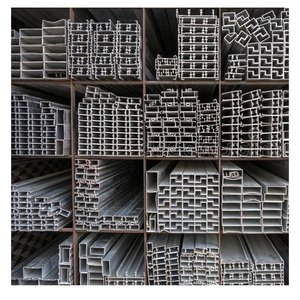

Standardized door and window profiles custom-tailored for South and Central American building standards (20, 25, and 38 series dies readily available).
Turnkey frame assembly profiles supplied complete with gaskets, EPDM weather-stripping, corner keys, and structural glazing accessories for fast assembly.

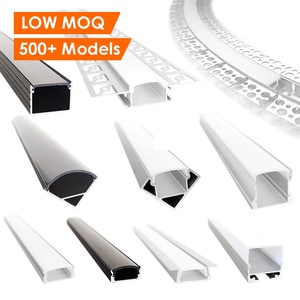

Precision-extruded heat-sink aluminum channels with frosted polycarbonate diffusers for integrated window sill, curtain wall accent, and interior lighting.
High-durability architectural extrusions engineered for commercial entrance doors and storefront framing. Exceeds AAMA 2604 powder coating criteria.
Why Tier-1 contractors, facade consultants, and architectural developers partner directly with our China manufacturing complex.
Every billet batch undergoes spectrometer analysis and web-hardness testing to guarantee strict compliance with 6063-T5, 6063-T6, and 6061-T6 alloy specifications before extrusion.
Operating automated vertical powder coating lines (Qualicoat standard), PVDF fluorocarbon spraying, and anodizing baths capable of producing up to 25μm protective oxide layers.
Our tooling center custom-engineers complex CAD/CAM extrusion dies within 7 to 10 days, backed by 5-axis precision CNC bending, notch cutting, and structural welding services.
Comparative engineering matrix reviewing primary architectural framing media to assist facade specifiers and procurement directors in technical evaluation.
| Performance Criteria | Thermal Break Aluminum (6063-T5) | High-Impact UPVC Profiles | Non-Thermal Aluminum |
|---|---|---|---|
| Thermal Conductivity (U-Factor) | Uf 1.4 - 2.0 W/m²K | Uf 1.1 - 1.5 W/m²K | Uf > 5.8 W/m²K |
| Tensile Yield Strength (Rm) | ≥ 205 MPa | ≥ 45 MPa | ≥ 195 MPa |
| Wind Load Resistance (Pa) | Class 5 (≥ 5000 Pa) | Class 3 (≥ 3000 Pa) | Class 4 (≥ 4000 Pa) |
| Acoustic Attenuation (Rw) | 38 dB - 48 dB (with IGU) | 40 dB - 46 dB (Double Glazed) | 28 dB - 34 dB |
| Expected Service Lifespan | 50+ Years (Recyclable) | 25 - 35 Years | 50+ Years |
| AAMA Finishing Compliance | AAMA 2604 / AAMA 2605 PVDF | UV Stabilized Co-extrusion | AAMA 2603 Standard |
The international building envelope sector is undergoing a structural paradigm shift driven by stringent municipal energy codes (such as Europe's EPBD and North America's ASHRAE 90.1), decarbonization mandates, and acoustic shielding requirements in hyper-urbanized zones. B2B importers must align their supply chains with four critical industrial innovations:
Traditional single-strip thermal breaks are rapidly being replaced by multi-cavity polyamides (PA66-GF25 reinforced with 25% glass fiber) equipped with aerogel insulation inserts, pushing frame U-factors down below 0.8 W/m²K for Passive House certification.
Global buyers are increasingly requesting certified Scope 1 & Scope 2 carbon footprint verification. Chinese factories utilizing hydro-powered aluminum smelters are offering profiles with under 4.0 kg CO2/kg Al compared to traditional coal-fired averages of 16 kg CO2/kg Al.
To mitigate sky-rocketing site labor costs across North America and Europe, procurement is shifting from field-assembled stick systems to factory-glazed unitized modules with interlocking split-mullion extrusions that snap together rapidly on-site.
Next-generation window framing incorporates concealed wiring channels for Building-Integrated Photovoltaics (BIPV), electrochromic smart glass controllers, and automated motorized actuators directly within the structural extrusion profile.
Addressing critical technical, logistical, and commercial inquiries for overseas buyers importing window profiles from China.
